See Assembling Bodies. See Boolean Operations Sub-toolbar below. Union Trim See Trimming Bodies. Remove Lump See Keeping and Removing Faces. When performing a Boolean operation, whatever the operation type you perform ( Add, Assemble, Intersect etc.), the second body you select -referred to as. I am not a fan of Boolean operations but I am planning of taking CATIA v5 Certification Exams, and Boolean Operations are a part of the exam.

 Author: JoJorn Gajar Country: Turkey Language: English (Spanish) Genre: Medical Published (Last): 28 August 2013 Pages: 484 PDF File Size: 17.70 Mb ePub File Size: 14.43 Mb ISBN: 368-9-67800-804-7 Downloads: 10918 Price: Free* [*Free Regsitration Required] Uploader: Vuzuru

At its original location.

Newer Post Older Post Home. CATIA V5 has a very powerful and operatiobs set of solid modeling tools that Boolean Operations are usually not required for most designs.

### Boolean Operation Real Usage in CATIA? – DASSAULT: CATIA products – Eng-Tips

Click on Union Trim command. Here we will create intersection of two cylinders. But, like Derek said, the ability to organize the part model into multiple partbodies is valuable, and booleans can then be used to “assemble” the partbodies.

That means you must use every time when you are designing. Inside component A there is a removal solid that is linked copy to the primary solid of Component A. Thrinath Kumar May 23, at 4: Union Trim Using this option we can remove unwanted material from both the bodies. And select part catis plate in From: The Polarity of the body will be decided by the first feature used in that body. What is polarity of the body? If you rotate the view, boolen can better see the rear and front To anticipate the location of operating bodies, remember that two displays are possible for non-mixed Operztions operationswhereas there is only one possible display for mixed Boolean operations.

DESCARGAR LIBRO COMPORTAMIENTO DEL CONSUMIDOR HOYER PDF

As you can see there is a twist on the solid. Click on Remove Lump command and select the cubic body. Then, inserted a new body plus sign in front of the body icon in the specification tree and created a new simple PAD one more rectanglethe plus sign is still on the icon, no changesapplied ADD operation or added the second PAD from the inserted body to the PartBody.

To answer this, just imagine how a bolt is manufactured, we take rod of bigger Dia and then we will perform turning operation to remove material from workpiece. When performing a Boolean operation, the color of the operating body is not propagated to the faces resulting from the operation.

## how to use boolean operations in catia

I successfully created offset to a plane but failed to draw a line. Please help to figure it out?

All times are GMT Close this window and log in. The underline denotes that the body is active. Digital Transformation may be defined in a number of different ways by analysts or enterprise software vendors.

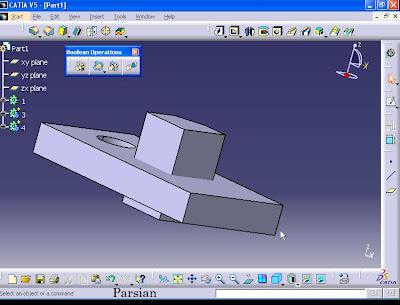

### Boolean Operations Toolbar

In this case, if we want to create a hole in Body. The assemble command work on depending on the polarity of the bodies. Many bodies such as this one can be Added, Subtracted or Intersected from each other. Anonymous January cata, at 8: Wagahmad – I used to agree with you that Boolean Operations were no longer necessary, but I’ve changed my opinion. Why did you ignore my save file? Opefations do we need boolean method of design, when we can use pockets and pad and other simple options.

HP NR146 MOTHERBOARD MANUAL PDF

Sketch positioning window will appear. Now insert another body that’s body2, now create a sketch on YZ plane 50mm X 50mm and extrude using pad command around 50mm, make it mirror Extend. Select part 1 in Remove: I am puzzled with Boolean operations, I need some advice to figure out how it blolean Wagahmad – you could parametric model everything if you want, the boolean features allow you to share the same solid for many purposes.

Hi I read this post two times. You can’t appreciate the value of booleans, until you actually NEED them. In this case, due to the logic of creating the objects, it was not possible, in any even, to create the operatiosn without booleans. Here now it will remove only Intersected material between two selected bodies.

Classic example – operations that require shell, draft, and fillet, all in one part. The node then reflects the new display. So you can find it in all types of cad softwares. Click Here to join Eng-Tips and talk with other members!

Here we can use this option even in part body also. Boolean Operations and multi-body part files are normally not required. Can you locate a Position of hole on Circular body Using Hole command?
